Ultimate solution for mainstream diagnostic imaging

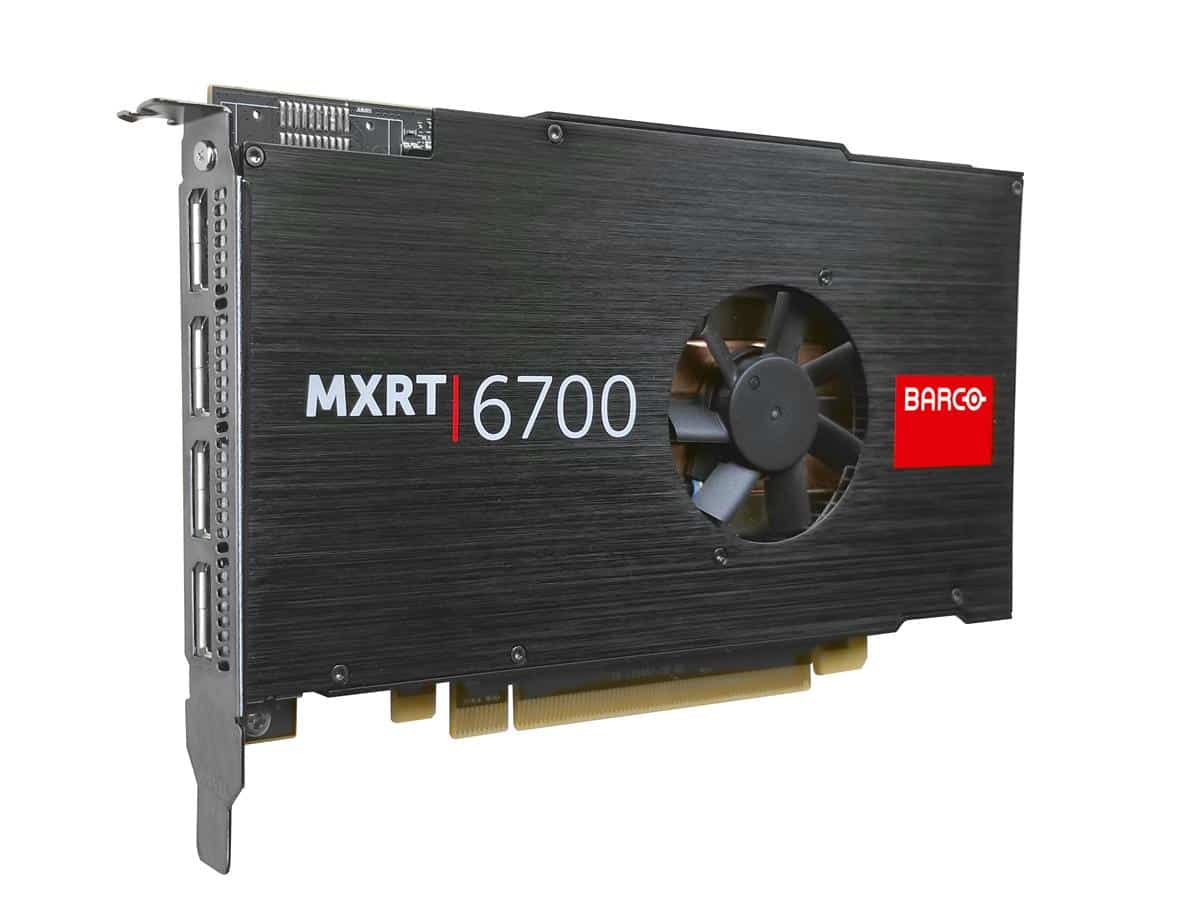

The high-performing Barco MXRT-6700 graphics card is a versatile solution with the power and features necessary to meet most diagnostic imaging needs. With 8GB of graphics memory driving four DisplayPort v1.4 outputs, it is the ideal solution for organizations looking to standardize on one controller across their entire fleet of reading stations.
Accelerate your workflow application responsiveness with 1792 stream processors and enable more efficient data transfers between the GPU and CPU with PCIe® 3.0 support. Key features include 4 ports to cover expanded display arrays, increased memory for larger image data loading, EDID emulation for multi-workstation configurations, and Thunderbolt™ 3 compatibility for eGFX applications.
Your business is our priority, which is why Barco’s services program is designed to drive positive business outcomes together.
Our mission is to enable the brightest and most reliable outcomes for you and your customers through
✔ a first-time right experience.
✔ ultimate peace-of-mind.
✔ maximum efficiency and ROI
✔ additional service revenues
| Bus compatibility | PCIe Gen3 x16 |
|---|---|
| Power consumption | 75 W |
| Form factor | 173mm (L) x 112mm (H) single wide PCIe slot |
| Operating system | Windows 7 (64-bit), Windows 10 (64-bit) |
| Platforms | Intel® and AMD architectures |
| Power Connector | None |
| Graphics accelerator | AMD Radeon Pro™ |
| Display memory | 8GB DDR5 |
| Memory interface | 256-bit |
| Memory bandwidth | 160 GB/s |
| Pixel depth | 32-bit pixels (10-bit grayscale and 30-bit color) |
| Electrical standard | DisplayPort (DP) v1.4 |
| Direct3D hardware support | Microsoft® DirectX v12, Vulkan® 1.1, Shader Model 5.1 |
| OpenGL hardware support | OpenGL 4.5 |
| Connectors | (4x) DisplayPort 1.4 |
| Connectivity | Native DisplayPort suggested DisplayPort to Single-link DVI adapter available separately |
| Approvals and compliance | FCC Part 15 Class B, CE EN 55032 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 32/24, IEC609050-1, VCCI, CSA C22.2, EU RoHS directive (2011/65/EU), Certificate of Information & Communication Equipment (Republic of Korea) |
| Operational temperature | 0° to 55°C |
