- Multimodality display for PACS and breast imaging
- 12MP screen resolution and Uniform Luminance Technology
- Accurate and consistent colors and greyscales
- Integrated tools to support workflow and improve ergonomics
- Automated QA and compliance tests
A versatile diagnostic display, for both PACS and breast imaging

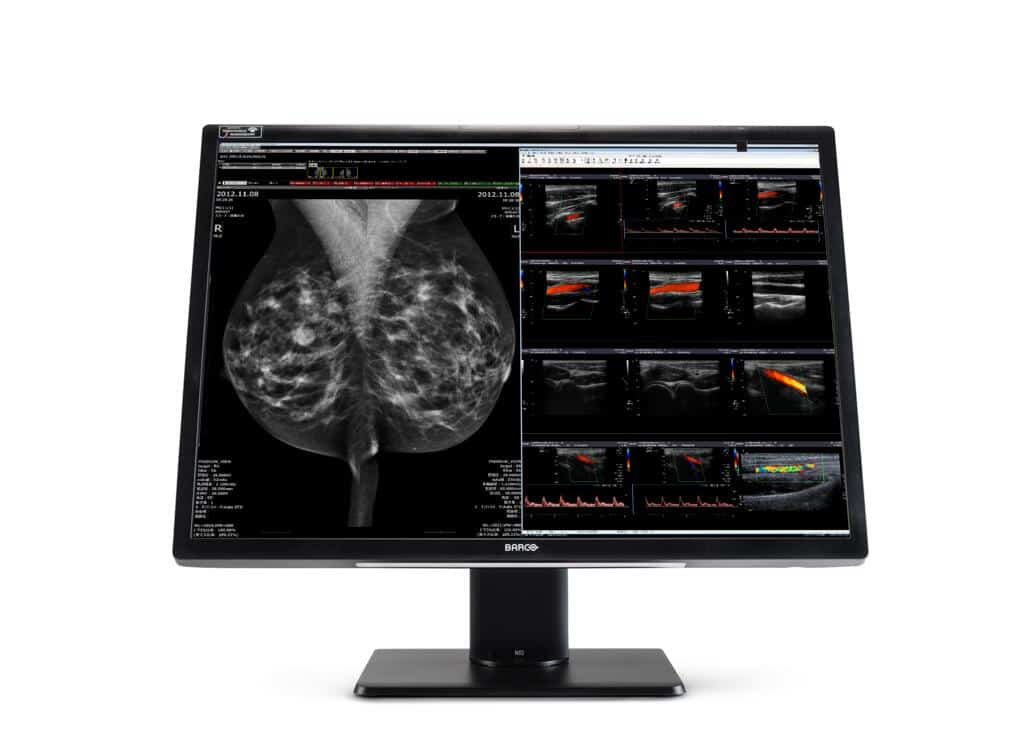

The Nio Fusion 12MP (MDNC-12130) display is designed to combine PACS and breast images on one workstation, so you don’t need to work on a cluttered desk with complex configurations and multiple portrait displays. A Nio Fusion 12MP will represent both 2D and 3D images fluidly, brightly and in detail, further helping you to speed up your reading sessions. A set of unique integrated tools improve reading ergonomics and support efficient workflow for static and dynamic imaging.
- Medical display
- Excellent uniformity correction
- Perfect representation of calibrated colors and greyscales
Enjoy consistent and compliant colors and grayscales
With a 12MP resolution, you’ll fit multiple images on one screen and enjoy every single one in extremely sharp and precise quality, with less panning and zooming. Nio Fusion 12MP displays are calibrated to meet the DICOM standard for grayscales. And thanks to the SteadyColor™ technology, you can also confidently rely on perceptually linear colors.
Barco’s QAWeb Enterprise software, included in the display, guarantees consistent image quality through automated calibration and QA, and also enables compliance to the latest regional and international regulations for image quality.
Read on a flexible display, with optimal comfort
The Nio Fusion 12MP is surprisingly thin and light. It mirrors most of a human’s natural field of vision and was designed to reduce head, hand and eye movements to a minimum. You can even switch between two workstations in no time, at the touch of a button with integrated KVM (Keyboard-Video-Mouse).
- Reflection-free surface enhances image sharpness
- SoftGlow ambient lighting reduces eye fatigue
- Uniform Luminance Technology ensures constant luminance in all regions of the screen
- Ambient Light Sensor and Compensation provide consistent images in any lighting conditions
A future-proof investment that lasts
The Nio Fusion 12MP is an all-in-one imaging solution, for both PACS and breast imaging, which will make it possible for you to save operational costs. Its smooth, fast system was designed to support you in your workflow, enabling you to see more patients. And last but not least, thanks to its long lifetime, the display can be your companion for years to come. All its components are warranted for 5 years.
Your business is our priority, which is why Barco’s services program is designed to drive positive business outcomes together.
Our mission is to enable the brightest and most reliable outcomes for you and your customers through
✔ a first-time right experience.
✔ ultimate peace-of-mind.
✔ maximum efficiency and ROI
✔ additional service revenues
| Screen technology | LCD |
|---|---|
| Active screen size (diagonal) | 784 mm (30.9″) |
| Active screen size (H x V) | 653 x 435 mm (25.7 x 17.1″) |
| Aspect ratio (H:V) | 3:2 |
| Resolution | Native 12MP (4200 x 2800 pixels) Configurable to 2 x 5.8MP (2100 x 2800 pixels) |
| Pixel pitch | 0.1554 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Bit depth | 30 bit |
| Viewing angle (H, V) | 178° |
| Uniformity Technology | ULT |
| SteadyColor Calibration | Yes (in display), when used with system components as outlined in the user guide |
| Ambient light presets | Yes, reading room selection |
| Ambient Light sensor | Yes |
| Front sensor | Yes |
| Maximum luminance (panel typical) | 1200 cd/m² |
| DICOM calibrated luminance | 600 cd/m² |
| Contrast ratio (panel typical) | 1500:1 |
| Response time ((Tr + Tf)/2) (typical) | 10 ms (average, with all single transitions within 1 frame period) |
| Housing color | Black / White |
| Video input signals | 2x DisplayPort 1.2 |
| USB ports | 2x USB-B 2.0 upstream (switchable endpoint) 2x USB-A 2.0 downstream |
| Power rating | 100-240 Vac, 50/60 Hz, 3.6-1.6 A |
| Power Consumption | 105 W (nominal) < 0.5 W (hibernate) < 0.5 W (standby) |
| Dimensions with stand (W x H x D) | 695 x 528~628 x 239 mm |
| Dimensions w/o stand (W x H x D) | 695 x 483 x 74 mm |
| Dimensions packaged (W x H x D) | 800 x 650 x 295 mm |
| Net weight with stand | 16.6 kg |
| Net weight w/o stand | 12.0 kg |
| Net weight packaged | 21.3 kg (without optional accessories) |
| Tilt | -5° / +25° |
| Swivel | -30° / +30° |
| Pivot | N/A |
| Height adjustment range | 100 mm |
| Mounting standard | VESA (100 mm) |
| Screen protection | N/A |
| Recommended modalities | All digital images, including digital mammography and breast tomosynthesis |
| Certifications | FDA 510(K) K203106 CE1639 (Medical Device) CCC (China) KC (Korea) BIS (India) EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan) INMETRO (Brazil) Pending Safety specific: IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 UL 60950-1:2019 CAN/CSA C22.2 No. 60950-1-07:2014 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2:2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-001 Level B VCCI Environmental: EU RoHS China RoHS, China Energy Label Korea e-Standby REACH Canada Health WEEE Packaging Directive |
| Supplied accessories | User guide Documentation disc System sheet Video cables USB cables Mains cables |
| Optional accessories | Display controller |
| QA software | QAWeb |
| Warranty | 5 years, including 40000 hours backlight warranty |
| Operating temperature | 0°C to +35°C (20°C to 30°C within specs) |
| Storage temperature | -20°C to 60°C |
| Operating humidity | 10% – 70% (non-condensing) |
| Storage humidity | 10% to 70% (non-condensing), max. 70% at max. 40 °C |
| Operating pressure | 62 kPa minimum |
| Storage pressure | 50 to 106 kPa |
