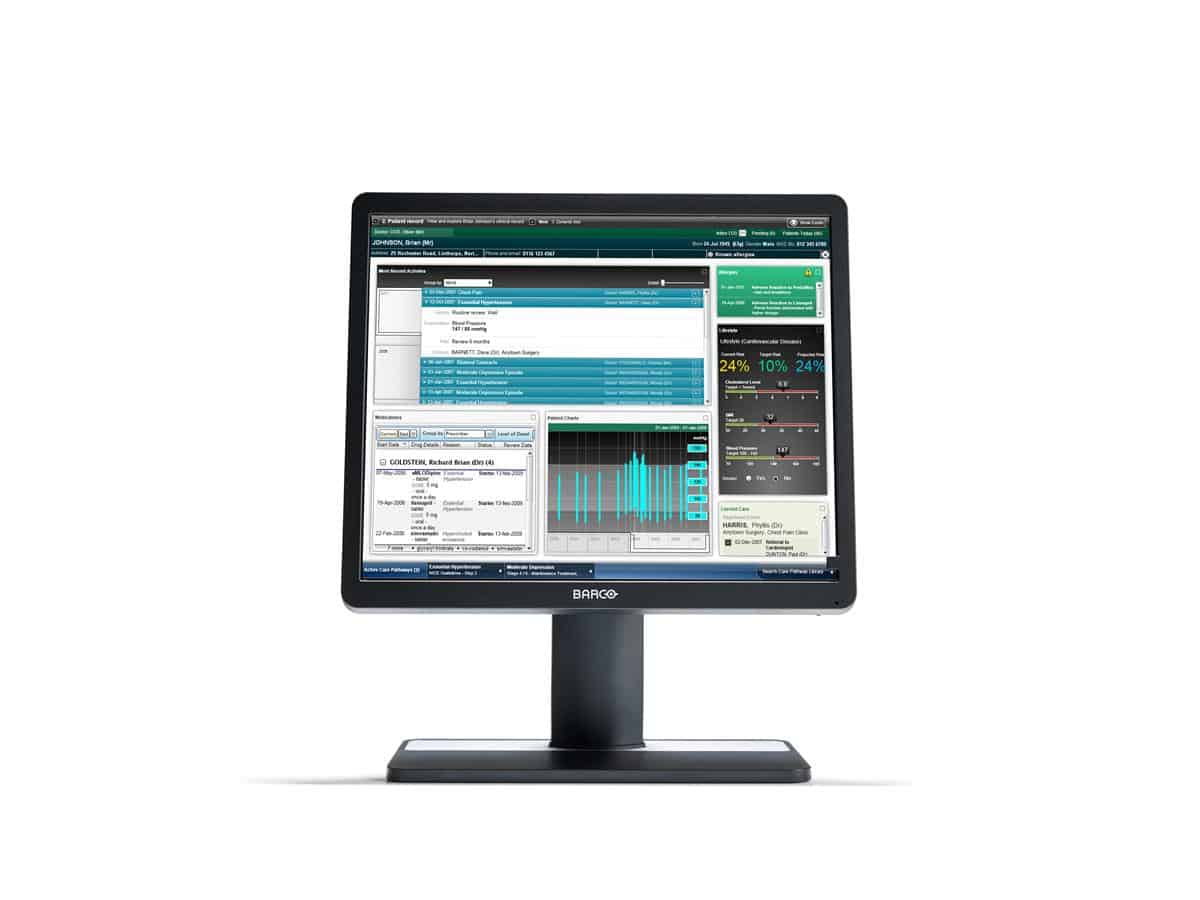

Eonis 19" (MDRC-1219)
19" clinical display for hospital-wide viewing of clinical data and images
- Fit for clinical use
- Automated Quality Assurance and calibration
- Front consistency sensor technology
- Different versions available
The MDRC-1219 brings reliable, DICOM compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance. A touchscreen version is also available.
Consistent images, easy collaboration
The high-quality display presents sharp, bright images with high contrast. The unique front consistency sensor automatically aligns the image quality every time the display is switched on, ensuring fast power-up and continuous luminance stability.Â
Result? Consistent images that make collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.Â
Quality assured, automatically
The MDRC-1219 comes with Barco’s cloud-based QAWeb Enterprise software, an online service for calibration, Quality Assurance and asset management. Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Fit for clinical use
The unique 5:4 aspect ratio is ideal for viewing all types of applications and images from medical modalities. Like every Barco clinical display, the MDRC-1219 complies with international medical and patient safety standards.
Models
- MDRC-1219: standard model
- MDRC-1219 TS: touchscreen
- MDRC-1219 HB: high-bright version
- MDRC-1219 HB TS: high-bright model with touchscreen
Your business is our priority, which is why Barco’s services program is designed to drive positive business outcomes together.
Our mission is to enable the brightest and most reliable outcomes for you and your customers through
✔ a first-time right experience.
✔ ultimate peace-of-mind.
✔ maximum efficiency and ROI
✔ additional service revenues
Screen technology | Standard versions: IPS TFT High bright versions: IPS AHVA |
---|---|
Active screen size (diagonal) | 482 mm (19.0″) |
Active screen size (H x V) | 376 x 301 mm (14.81 x 11.85″) |
Aspect ratio (H:V) | 5:4 |
Resolution | 1MP (1280 x 1024 pixels) |
Pixel pitch | 0.294 mm |
Color imaging | Yes |
Gray imaging | Yes |
Bit depth | 8 bit (DVI) 10 bit (DisplayPort) |
Viewing angle (H, V) | 178° |
Ambient light presets | Yes, reading room selection |
Backlight Output Stabilization (BLOS) | Standard versions: No High bright versions: Yes |
Front sensor | Standard versions: Yes, Front Consistency Sensor High bright versions: No |
Maximum luminance (panel typical) | Standard versions: 330 cd/m² High bright versions: 700 cd/m² |
DICOM calibrated luminance | Standard versions: 250 cd/m² High bright versions: 400 cd/m² |
Contrast ratio (panel typical) | Standard versions: 1000:1 High bright versions: 900:1 |
Response time ((Tr + Tf)/2) (typical) | Standard versions: 15 ms High bright versions: 12.5 ms |
Housing color | Black |
Video input signals | DVI (DVI-D and DVI-A) DisplayPort |
USB ports | 1x USB 2.0 upstream (endpoint) Standard versions: 2x USB 2.0 downstream High bright versions: 1x USB 2.0 downstream |
Power requirements | Internal power supply (100-240 Vac, 50/60 Hz) |
Power Consumption | Standard versions: 22 W (nominal) High bright versions: 25 W (nominal) < 0.5 W (standby) |
Dimensions with stand (W x H x D) | Portrait: 348 x 440~550 x 201 mm Landscape:411 x 408~518 x 201 mm |
Dimensions w/o stand (W x H x D) | 411 x 348 x 67 mm |
Dimensions packaged (W x H x D) | 426 x 592 x 326 mm |
Net weight with stand | MDRC-1219: 5.3 kg MDRC-1219 (option TS): 6.1 kg MDRC-1219 (option HB): 5.4 kg MDRC-1219 (option HB TS): 6.2 kg |
Net weight w/o stand | MDRC-1219: 3.1 kg MDRC-1219 (option TS): 3.9 kg MDRC-1219 (option HB): 3.2 kg MDRC-1219 (option HB TS): 4.0 kg |
Net weight packaged | MDRC-1219: 8.1 kg MDRC-1219 (option TS): 8.9 kg MDRC-1219 (option HB): 7.4 kg MDRC-1219 (option HB TS): 8.2 kg |
Tilt | -5° to +22° |
Swivel | N/A |
Pivot | 90° |
Height adjustment range | 110 mm |
Mounting standard | VESA (100 mm) |
Screen protection | Touch versions: PCAP touchscreen Other versions: N/A |
Recommended modalities | Reviewing of digital images |
Certifications | Standard versions: FDA Class I,510(k) exempt CE (Medical Device Class I) CCC (China), Inmetro (Brazil), KC (Korea), BIS (India), EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan) Safety specific: IEC 60950-1:2005 +A1:2009 +A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1: 2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed4) EN 60601-1-2: 2015 (ed4) ICES-003 Level B Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive High bright versions: FDA Class I,510(k) exempt CE (Medical Device Class I) Safety specific: IEC 60950-1:2005 +A1:2009 +A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1: 2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed4) EN 60601-1-2: 2015 (ed4) ICES-003 Level B Environmental: EU RoHS, REACH, Canada Health, WEEE, Packaging Directive |
Supplied accessories | 1x DisplayPort video cable 1x USB cable 1x printed User Guide (in English, other languages can be found on the documentation disc) 1x documentation disc 1x system sheet Mains cables |
QA software | QAWeb |
Warranty | 3 years |
Operating temperature | Standard versions: 0 °C to +35 °C High bright versions: 0°C to +40 °C |
Storage temperature | -20°C to +60°C |
Operating humidity | Standard versions: 20 % to 80 % (non-condensing) High bright versions: 8 % to 80 % (non-condensing) |
Storage humidity | Standard versions: 10 % to 90 % (non-condensing) High bright versions: 5 % to 90 % (non-condensing) |
Operating pressure | 70 kPa minimum |
Storage pressure | 50 to 106 kPa |
