- Color medical display with 1600 x 1200 resolution
- Barco LED technology to unveil the subtlest details
- Front sensor for on-demand image quality checks

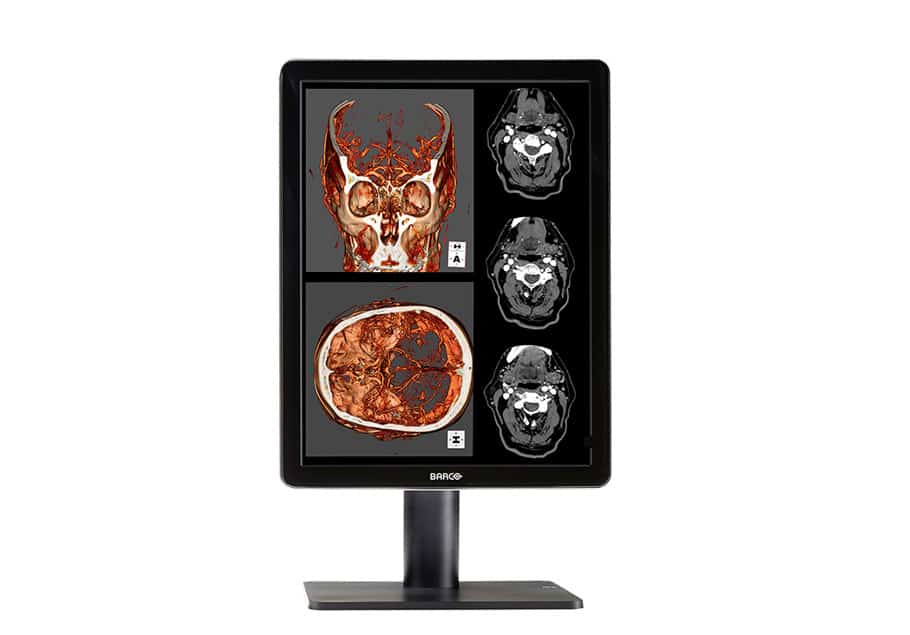

Nio Color 2MP LEDÂ is a 2 MegaPixel color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 2MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.Â
Confident color reading
Equipped with high-bright LED backlights, Nio Color 2MP LED delivers excellent brightness and more shades of gray to detect subtle details more quickly. The unique front-of-screen sensor ensures you see consistent and precise images at all times for confident diagnoses.
On-demand image quality checks
The front-of-screen sensor on Nio Color 2MP LED, which works seamlessly with Barco’s online QAWeb Enterprise solution for automated Quality Assurance and on-demand calibration, makes sure you are viewing perfect DICOM images.
An excellent investment
The Nio Color 2MP LED is as low in power consumption as it is high in brightness. Because it uses less power, the display produces less heat and requires less cooling, which impacts maintenance and operational costs. Additionally, the LED backlights offer a long lifetime – even at high brightness – providing an excellent return on your investment.
Nio Color 2MP LED is available with and without cover.
Your business is our priority, which is why Barco’s services program is designed to drive positive business outcomes together.
Our mission is to enable the brightest and most reliable outcomes for you and your customers through
✔ a first-time right experience.
✔ ultimate peace-of-mind.
✔ maximum efficiency and ROI
✔ additional service revenues
| Screen technology | IPS-Pro |
|---|---|
| Active screen size (diagonal) | 540 mm (21.3″) |
| Active screen size (H x V) | 432 x 324 mm (17.0 x 12.8″) |
| Aspect ratio (H:V) | 4:3 |
| Resolution | 2MP (1600 x 1200 pixels) |
| Pixel pitch | 0.27 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Bit depth | 30 bit |
| Viewing angle (H, V) | 178° |
| Uniformity Technology | ULT |
| Ambient light presets | Yes, reading room selection |
| Ambient Light sensor | Yes |
| Backlight Output Stabilization (BLOS) | Yes |
| Front sensor | Yes |
| Maximum luminance (panel typical) | 800 cd/m² |
| DICOM calibrated luminance | 500 cd/m² |
| Contrast ratio (panel typical) | 1400:1 |
| Response time ((Tr + Tf)/2) (typical) | 10 ms |
| Housing color | RAL 9003 / RAL 9004 |
| Video input signals | 1x DVI 1x DisplayPort |
| USB ports | 1x USB 2.0 upstream (endpoint) 2x USB 2.0 downstream |
| Power rating | 24 VDC, 3.75 A |
| Power requirements | This device shall only be powered by the following medical approved power supply: Bridgepower, type JMW190KB2400F11 Ratings marked on the medical power supply:
|
| Power Consumption | 50 W (nominal) < 1 W (hibernate) < 1 W (standby) |
| Dimensions with stand (W x H x D) | Portrait: 378 x 525~625 x 235 mm Landscape: 491 x 466~566 x 235 mm |
| Dimensions w/o stand (W x H x D) | Portrait: 378 x 491 x 83 mm Landscape: 491 x 378 x 83 mm |
| Dimensions packaged (W x H x D) | 655 x 388 x 495 mm |
| Net weight with stand | With protective cover: 12.6 kg Without protective cover: 11.3 kg |
| Net weight w/o stand | With protective cover: 7.6 kg Without protective cover: 6.3 kg |
| Net weight packaged | With protective cover: 16.8 kg (without optional accessories) Without protective cover: 15.5 kg (without optional accessories) |
| Tilt | -5° / +25° |
| Swivel | -30° / +30° |
| Pivot | 90° |
| Height adjustment range | 100 mm |
| Mounting standard | VESA (100 mm) |
| Recommended modalities | All digital images, except digital mammography |
| Certifications | CE1639 (MDD 93/42/EEC; A1:2007/47/EC class IIb product) IEC 60601-1(ed.3); IEC 60601-1(ed.3 am1) ANSI/AAMI ES60601-1(2005+C1:09+A2:10+A1:12) CAN/CSA-C22.2 No. 60601-1(2014) EN 60601-1-2:2015 EN 60601-1:2006/A11:2011/A12:2014; EN 60601-1:2006/A1:2013 CCC – GB9254-2008 + GB4943.1-2011 + GB17625.1-2012 KC BIS BSMI EAC INMETRO VCCI FCC class B ICES-001 Level B FDA 510(k) RoHS |
| Supplied accessories | User guide Documentation disc System sheet Video cable Mains cable(s) USB cable External power supply |
| QA software | QAWeb |
| Warranty | 5 years, including 20000 hrs backlight warranty |
| Operating temperature | 0 °C to 35 °C (15 °C to 30 °C within specs) |
| Storage temperature | -20°C to 60°C |
| Operating humidity | 8% to 80% (non-condensing) |
| Storage humidity | 5% to 85% (non-condensing) |
| Operating pressure | 70 kPa minimum |
| Storage pressure | 50 to 106 kPa |
